Rotary Table Vertical Injection Moulding Machine with 200T Clamping Force High Productivity and 1 Year Warranty
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | JINTONG |
| Chứng nhận: | ISO9001 CE |
| Số mô hình: | JTT-2000R |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 mảnh |
|---|---|
| Giá bán: | $62,000-66,000 / piece |
|
Thông tin chi tiết |
|||
| Kẹp lực: | 200t | Trọng lượng tiêm: | 456-662g |
|---|---|---|---|
| Đột kích: | 75 mm | lực đẩy: | 48 kN |
| Khối lượng bắn: | 678 cm³ | Tỷ lệ tiêm: | 212 g/s |
| Đường kính vít: | 60 mm | Buộc khoảng cách thanh: | 760mm |
| Trọng lượng máy: | 12000kg | Đột quỵ mở: | 600 mm |
| Quyền lực: | 44,3 kW | đột quỵ trục vít: | 260mm |
| lực lượng mở: | 22.4t | đường kính bàn quay: | 1500mm |
| Kích thước máy: | 3,0 * 2,2 * 3,6m | ||
| Làm nổi bật: | 200T Clamping Force Vertical Injection Moulding Machine,High Productivity Rotary Table Injection Moulding Machine,1 Year Warranty Vertical Plastic Injection Moulding Machine |
||
Mô tả sản phẩm

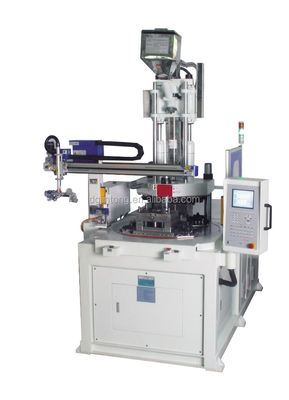

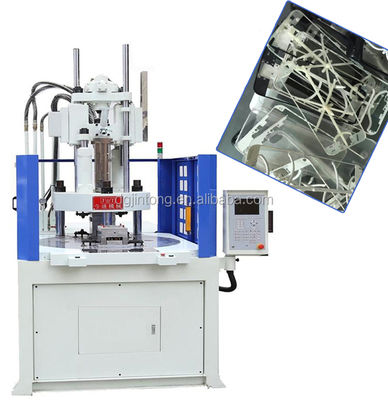

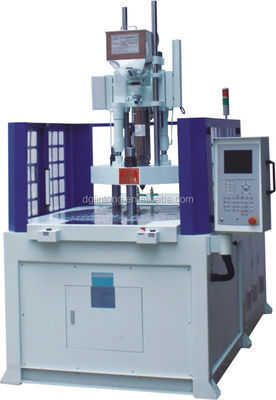

Rotary Table Vertical Plastic Injection Moulding Machine 200T (Model JTT-2000R)
Key Specifications
| Clamping Force | 200T |
|---|---|
| Injection Weight | 456-662g |
Product Description
Vertical clamping and injection system with rotary table functionality for efficient plastic molding operations.
Main Features
- Vertical clamping and injection system
- Adjustable clamping force, injection weight and shot speed
- Multiple station configurations (2, 3 or multi-station)
- Computer-controlled rotary table with forward, reverse, and alternating rotation
- Optional energy-saving motor available
- Easy torque, speed, and deceleration distance adjustment
Product Advantages
Energy Efficiency
Saves 30% energy compared to similar products using SIFU pump system
High Productivity
SIFU motor with max speed 2200/min increases oil pump output, improving productivity by over 15%
Thermal Management
Reduces cooling water requirement by 55% compared to similar machines
Quiet Operation
Optimized motor with imported bearing and oil pump reduces noise by 15-20db
Precision Molding
Closed-cycle control with pressure sensor and motor rotary encoder ensures product consistency
Service Advantage
With 17 years of customer service experience, we've developed systematic and standardized service processes including a 24-hour response mechanism to promptly resolve customer issues.
