Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Quảng Đông, Trung Quốc |
| Hàng hiệu: | JINTONG |
| Số mô hình: | JTT-850R |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 mảnh |
|---|---|
| Giá bán: | $26,000-27,000 / piece |
|
Thông tin chi tiết |
|||
| Công suất hóa dẻo: | 180 g/s | Chiều cao khuôn: | 110 - 450mm |
|---|---|---|---|
| Số đầu phun: | 2 | Đột kích: | 75 mm |
| lực đẩy: | 33 kN | Khối lượng bắn lý thuyết: | 276 cm³ |
| Tỷ lệ tiêm: | 167 gam/giây | Trọng lượng tiêm: | 330 gam |
| Tốc độ vít: | 1 - 200 vòng/phút | Đường kính vít: | 50 mm |
| Tỷ lệ l/d vít: | 25 | Khoảng cách giữa các thanh giằng: | 560 mm |
| Cân nặng: | 4000 kg | Đột quỵ mở: | 500 mm |
| Quyền lực: | 21,6 kW | ||
| Làm nổi bật: | 85T Vertical Injection Molding Machine,33 kN Ejector Force Rotary Injection Molding Machine,276 cm³ Theoretical Shot Volume Plastic Injection Molding Machine |
||
Mô tả sản phẩm

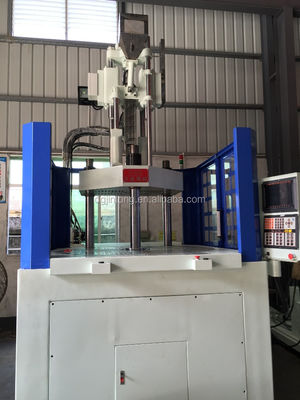

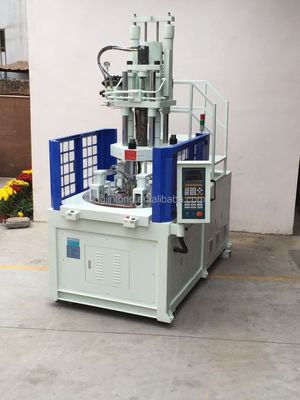

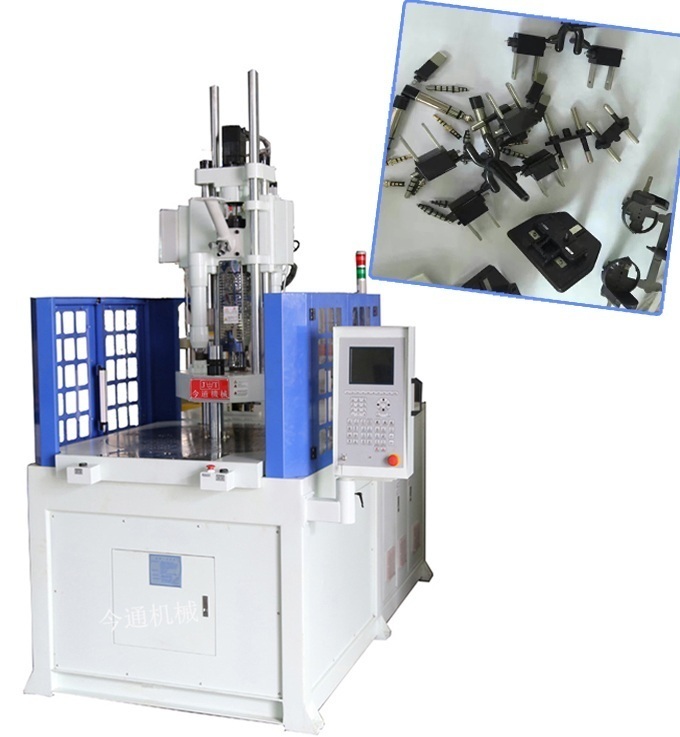

Full-auto Vertical Rotary Injection Molding Machine 85T
Product Description
Model: JTT-850R
Clamping Force: 85T
Injection Weight: 165-272g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction (forward-rotating, reverse-rotating, forward and reverse alternative rotating)
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be adjusted according to actual demand
- Available in 2 stations, 3 stations, or multi-station configurations (one up die, two or four down die)
- Easy operation for insert parts, improves productivity
Certifications
Detailed Images
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Saves 55% cooling water quantity compared to similar products
- Low noise: Optimized motor working condition with imported bearing and oil pump reduces noise by 15-20db
- Precision: Complete close-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
17 years of customer service experience with a systematic and standardized service process. We maintain a 24-hour response mechanism to promptly solve customer problems and provide excellent service.
Packing & Delivery
