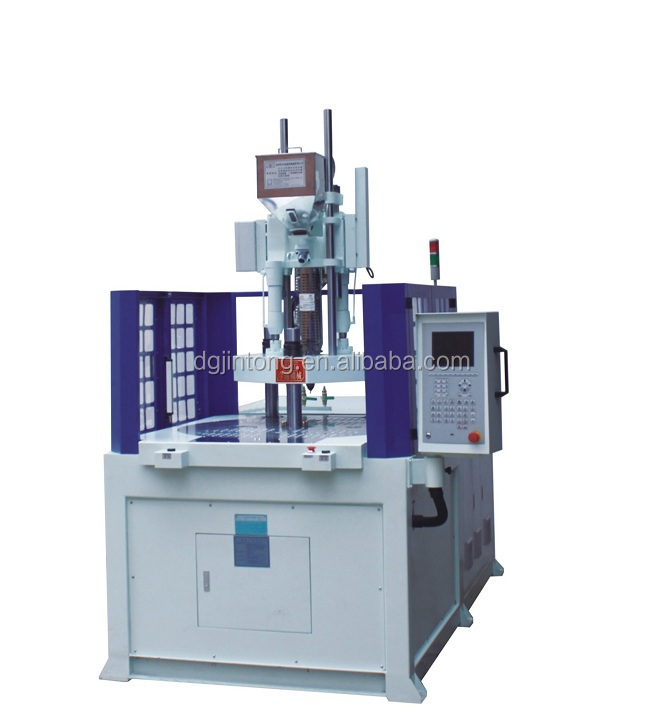

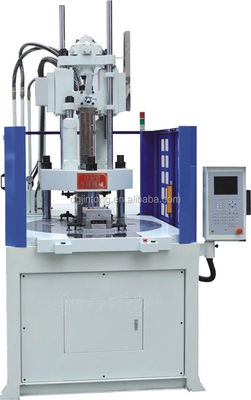

55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Quảng Đông, Trung Quốc |
| Hàng hiệu: | JINTONG |
| Số mô hình: | JTT-550R |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 mảnh |
|---|---|
| Giá bán: | $19,000-21,000 / piece |
|
Thông tin chi tiết |
|||
| Công suất hóa dẻo: | 150 g/s | Chiều cao khuôn: | 160 - 300mm |
|---|---|---|---|
| Số đầu phun: | 2 | Đột kích: | 60 mm |
| lực đẩy: | 1.8 kN | Khối lượng bắn lý thuyết: | 170 cm³ |
| Tỷ lệ tiêm: | 113 gam/giây | Trọng lượng tiêm: | 141 gam |
| Tốc độ vít: | 0 - 215 vòng/phút | Đường kính vít: | 40 mm |
| Tỷ lệ l/d vít: | 22 | Khoảng cách giữa các thanh giằng: | 510mm |
| Cân nặng: | 2400kg | Đột quỵ mở: | 540 mm |
| Quyền lực: | 12,8KW | ||
| Làm nổi bật: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
Mô tả sản phẩm
Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description
Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications
Detailed Images
Product Advantages

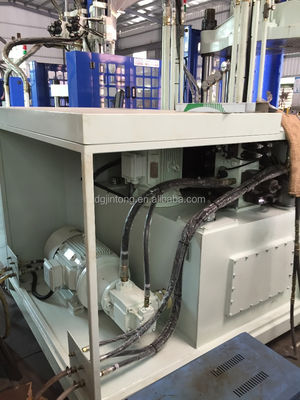

Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.
Packing & Delivery
